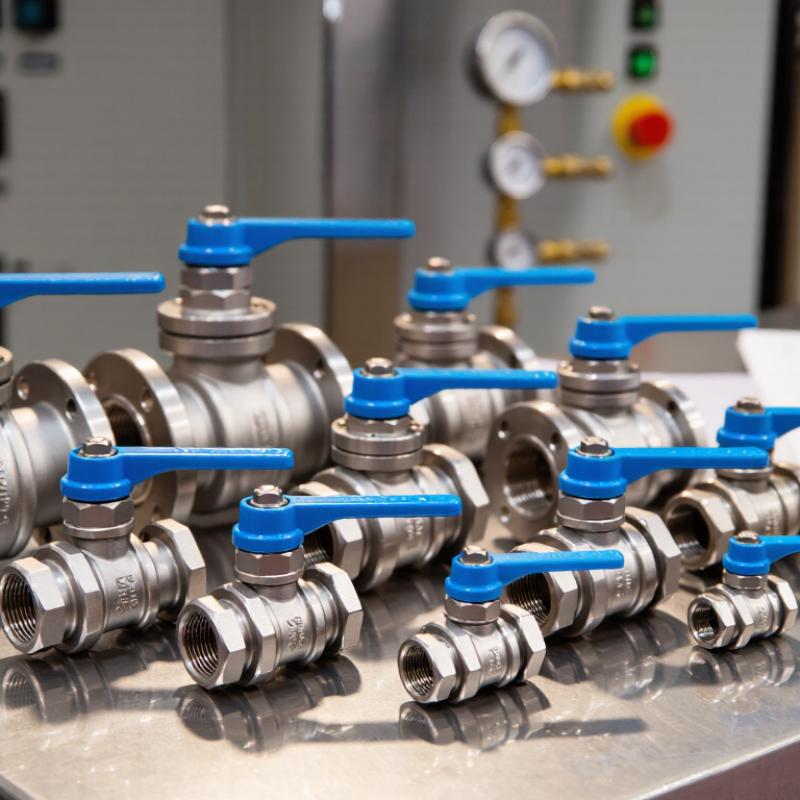

7 Stainless Steel Ball Valve Buying Tips?

Choosing the right stainless steel ball valve can prevent leaks, production delays, and expensive maintenance. Yet many buyers focus only on price and overlook the valve’s working conditions. A polished body does not always mean reliable performance.

This guide shares seven practical buying tips based on common industrial purchasing experience. It examines material grades, pressure ratings, temperature limits, connection types, sealing materials, flow requirements, and supplier support. Each detail matters when a valve controls water, chemicals, compressed air, or food-processing fluids.

Start with the medium.

A valve used for clean water may need different seals than one handling corrosive chemicals. Stainless steel grades also deserve careful attention. Grade 304 suits many general applications, while Grade 316 often provides better resistance in salty or chemically demanding environments. Still, assumptions can cause mistakes. I once overlooked temperature fluctuations during selection, and the specification looked suitable only on paper.

Reliable buying decisions require more than a product photograph. Check test records, pressure ratings, dimensional drawings, and traceable material information. Ask whether the supplier verifies leakage performance before shipment. Certifications can support confidence, but they should match the application rather than decorate a brochure.

The following tips help buyers compare products more objectively. They also highlight details that are easy to miss, such as handle clearance, actuator compatibility, and future maintenance access. No selection method is perfect. However, careful questions and realistic operating data can reduce avoidable failures.

7 Stainless Steel Ball Valve Buying Tips?
Table of Contents [Hide]
1 Define Service Conditions Using ASME B16.34 Pressure-Temperature Ratings
2 Choose Stainless Grades: ASTM A351 CF8, CF8M, and 316L Corrosion Data
3 Compare Port Design and Cv Values with Manufacturer Flow-Test Results
4 Evaluate Sealing Performance Through ISO 5208 Leakage Classes
5 Verify API 608, NACE MR0175, Material Traceability, and Test Records

Define Service Conditions Using ASME B16.34 Pressure-Temperature Ratings

When buying a stainless steel ball valve, define service conditions before comparing prices. ASME B16.34 pressure-temperature ratings connect allowable pressure with valve material, pressure class, and operating temperature. A Class 150 rating at 38°C does not remain unchanged at 200°C. Stainless steel grade matters too.

Record the maximum pressure, normal pressure, design temperature, fluid phase, and thermal cycling. Then check the correct ASME B16.34 table. Do not read the class number as a direct pressure value. That shortcut is tempting, and sometimes wrong. For example, steam service can reduce the allowable pressure sharply as temperature rises. I have seen specifications list only “Class 300,” leaving the actual temperature unstated.

The International Energy Agency reports that industry consumes roughly 37% of global final energy, with process heat representing a major demand. That figure highlights why thermal conditions deserve careful attention. A valve near a furnace may face repeated expansion, while a cryogenic line creates different sealing risks.

Compare the rating with piping design pressure, corrosion allowance, and shutoff differential pressure. Also verify whether the supplier’s test data follows ASME or API requirements. Product brochures often simplify rating tables. Engineers should request the material designation, pressure-temperature chart, and applicable edition. A small documentation gap can become a large maintenance problem.

Choose Stainless Grades: ASTM A351 CF8, CF8M, and 316L Corrosion Data

When buying a stainless steel ball valve, compare the material grade with the service environment. ASTM A351 CF8 is a cast equivalent of Type 304 stainless steel. It usually contains chromium and nickel, but no intentional molybdenum. CF8 suits clean water, air, and many mildly corrosive fluids. Chloride exposure can still cause pitting, especially in stagnant areas.

ASTM A351 CF8M contains molybdenum, typically around 2–3%. This improves resistance to chloride pitting and crevice corrosion. It is often a stronger choice for seawater mist, chemical cleaning fluids, and moderately saline process lines. However, CF8M is not immune to corrosion. Warm chloride solutions can attack valve cavities, threads, and poorly flushed dead zones. A polished surface helps, but it cannot replace correct material selection.

316L is a low-carbon wrought stainless steel, usually containing up to 0.03% carbon. Its lower carbon content reduces sensitization after welding. Its corrosion performance is often comparable to, or better than, CF8M because manufacturing quality differs. Do not compare grades using one neat chart. Actual corrosion rates depend on chloride concentration, temperature, pH, oxygen, velocity, and contamination. Check mill certificates, casting quality, surface finish, and pressure ratings. Ask for test data from a similar operating environment. That extra question may expose an unsuitable valve before installation.

Stainless Steel Ball Valve Grade Comparison

Representative midpoint values from standard chemical composition ranges are shown in weight percent. Chromium supports the passive layer, while molybdenum significantly improves resistance to chloride-induced pitting and crevice corrosion.

CF8 values are based on ASTM A351 ranges of approximately 18–21% chromium and 8–11% nickel. CF8M values are based on approximately 18–21% chromium, 9–12% nickel, and 2–3% molybdenum. 316L values are based on commonly specified ASTM A240/A276 ranges of approximately 16–18% chromium, 10–14% nickel, and 2–3% molybdenum. Actual corrosion performance also depends on chloride concentration, temperature, surface finish, welding quality, and service conditions.

Compare Port Design and Cv Values with Manufacturer Flow-Test Results

7 Stainless Steel Ball Valve Buying Tips

When selecting a stainless steel ball valve, compare port design before comparing price. A full-port valve keeps the bore close to the connected pipe diameter. It usually creates lower pressure loss and helps reduce turbulence. A reduced-port valve may cost less, but its smaller opening can restrict flow. That difference becomes visible near pumps, control equipment, and long pipe runs. Measure the actual line size, fluid viscosity, and expected flow rate. Do not guess.

The manufacturer’s Cv value deserves careful review. Cv shows how much water can pass through a valve at a defined pressure drop. Compare values tested under the same conditions. Check the test medium, pressure differential, temperature, valve position, and measurement standard. A catalog number without test conditions is incomplete. Request the manufacturer’s flow-test results, not only a sales sheet. Look for repeatability, test uncertainty, and the tested valve size. That matters.

In field selection reviews, one common mistake is treating Cv as a fixed performance promise. It is not. Installation layout, fittings, scale, and partial opening can change actual flow. Ask whether the reported result represents a full-port or reduced-port design. Check the pressure drop at your working flow, then compare it with the pump curve. Small details matter. I would also verify body material, seat compatibility, pressure rating, and inspection records. Sometimes the “best” valve has an impressive Cv but poor control at low flow. Recheck the assumptions.

Evaluate Sealing Performance Through ISO 5208 Leakage Classes

When buying a stainless steel ball valve, sealing performance deserves more attention than a polished body or low price. ISO 5208 provides a practical framework for checking seat leakage under controlled conditions. It defines leakage rates and test methods, helping buyers compare valves using measurable results. However, the required class depends on valve design, size, test medium, pressure, and service temperature. A valve for clean water may need different acceptance criteria from one handling hot oil.

Buying tip: Ask for the exact ISO 5208 leakage rate, test pressure, medium, and duration. Do not accept “zero leakage” as a complete specification. A commonly requested target is Rate A, but it may not suit every valve or operating condition. Resilient seats can provide very tight shutoff, while metal seats may require a different class or realistic leakage allowance. Check whether the certificate covers the finished valve, not only a sample from production.

During inspection, compare the certificate with the nameplate and purchase order. Look for test dates, valve size, pressure rating, and seat material. Small details matter. I have seen specifications that listed ISO 5208 without naming a leakage rate, creating confusion after delivery. That omission is easy to miss. Also consider repeated cycling, abrasive particles, and thermal expansion, because a valve passing a factory test can perform differently in service. Choose a documented requirement, then review whether it reflects actual operating conditions.

7 Stainless Steel Ball Valve Buying Tips? - Evaluate Sealing Performance Through ISO 5208 Leakage Classes

No. Buying Dimension What to Evaluate ISO 5208 Leakage Guidance Practical Selection Data Buyer Verification
1 Required tightness level Define whether the valve is used for isolation, pressure containment, toxic service, vacuum service, or general utility flow. Rate A preferred
Rate A means no visually detectable leakage during the specified test. Lower-rated acceptance should only be used when the application allows it.		 For isolation duties involving water, compressed air, gas, or hazardous fluids, request a documented seat test and specify the required ISO 5208 rate in the purchase order. Ask for the test medium, test pressure, test duration, valve size, and recorded leakage result—not only a general “leak-tight” statement.
2 Valve size and port design Match the nominal diameter and determine whether a full-port or reduced-port ball is suitable for the line, cleaning method, and pressure drop requirements. Rate A–G is DN-related
ISO 5208 leakage acceptance is interpreted with the nominal size and specified test medium. Do not compare results without the DN and test conditions.		 Common process sizes include DN15, DN25, DN50, and DN100. A full-port DN50 valve generally offers a flow passage closer to the pipe bore than a reduced-port design. Confirm DN, connection standard, bore type, flow coefficient, face-to-face dimension, and whether the valve can pass the required cleaning tools or pigs.
3 Seat material and temperature Check chemical compatibility, operating temperature, thermal cycling, pressure, and the possibility of seat deformation or cold flow. Class alone is not enough
A valve may achieve a specified leakage rate at room temperature but require a separate high-temperature or low-temperature test for actual service conditions.		 PTFE seats are widely used for many chemical and water services; reinforced PTFE can improve creep resistance. PEEK or metal seats may be considered for higher temperature, abrasive, or severe-duty applications. Request the seat material, continuous and peak temperature limits, pressure-temperature chart, chemical compatibility data, and any required fire-safe qualification.
4 Body, ball, and stem materials Verify corrosion resistance and material suitability for chloride, moisture, process chemicals, outdoor exposure, and cyclic operation. Leakage test focuses on sealing
ISO 5208 leakage results do not replace material verification. A valve can pass a seat test while still being unsuitable for the process environment.		 Typical stainless-steel options include corrosion-resistant austenitic grades such as 304/304L or 316/316L, selected according to the fluid and chloride exposure. Check material certificates, body and trim grades, stem construction, anti-static features where required, surface finish, and resistance to the actual process medium.
5 Pressure class and shell integrity Separate shell-pressure capability from seat-sealing capability. Both must match the design pressure and temperature. Specify separate tests
Seat leakage classification evaluates closure tightness; it does not by itself prove the body, bonnet, end connections, or stem seal are suitable for the system pressure.		 Examples of commonly specified nominal pressure levels include PN16 and PN40, but the allowable pressure depends on valve design, material, temperature, and applicable product standard. Request the pressure-temperature rating, shell test result, seat test result, end-connection rating, and applicable design or inspection standard.
6 Stem sealing and external leakage Evaluate the stem packing, gland design, anti-blowout construction, and emissions requirements, especially for gas or hazardous service. Seat class does not cover all external leaks
A satisfactory ISO 5208 seat result does not automatically demonstrate low fugitive emissions through the stem or body joint.		 A double stem seal, adjustable gland, or live-loaded packing may be appropriate for frequent cycling or emission-sensitive service. The exact design must be confirmed with the supplier. Ask for an external leakage or fugitive-emission test when required, along with cycle count, packing material, gland arrangement, and maintenance instructions.
7 Test documentation and repeatability Buy on measurable evidence: test procedure, calibration, acceptance criteria, and traceable records for the supplied valve size and configuration. Require documented ISO 5208 result
Rates progress from the tightest acceptance, Rate A, toward higher permissible leakage. The selected rate must be stated together with the test medium and test conditions.		 For critical isolation, specify 100% seat testing of each valve, serialized test records, calibrated instruments, and clear identification of upstream and downstream test results where applicable. Review the certificate for valve size, pressure, medium, duration, leakage class, test date, instrument identification, and acceptance signature before shipment.

Important: ISO 5208 leakage classes must be interpreted with the nominal size, test medium, test pressure, test duration, valve type, and applicable product requirements. Always confirm the exact acceptance criteria in the current edition of the standard and in the purchase specification.

Verify API 608, NACE MR0175, Material Traceability, and Test Records

7 Stainless Steel Ball Valve Buying Tips?

Verify API 608, NACE MR0175, Material Traceability, and Test Records

When buying a stainless steel ball valve, treat documentation as part of the valve. API 608 should match the valve design, size, pressure class, and project specification. Do not accept a certificate with only a generic reference. Check it. Ask for the exact standard edition and applicable test requirements. Small wording differences can hide large gaps.

For sour-service applications, verify NACE MR0175, also known as ISO 15156, when applicable. Confirm that wetted materials and hardness limits suit the stated environment. Material selection is not a checkbox. Request mill test reports, heat numbers, and a traceability chain from body to trim. Compare valve markings with every document. A missing heat number should stop the purchase until clarified.

Test records deserve equal attention. Review hydrostatic shell tests, seat leakage results, pressure, duration, and acceptance criteria. Ask whether testing followed API 598 or the specified project procedure. Dates, signatures, gauge identification, and calibration details strengthen confidence. Photos can help, but they do not replace controlled records. A neat-looking PDF may still conceal incomplete traceability. Keep supplier replies with the purchase file. That habit feels slow. It can prevent an expensive replacement later.
